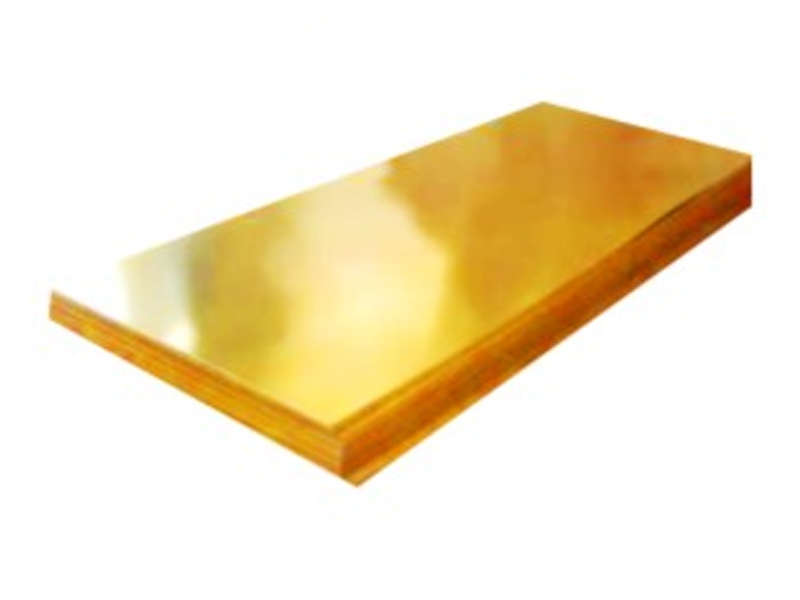

黃銅是以電解銅、鋅以及微量元素為原料，經過鑄錠、熱軋、冷軋、熱處理、表面清理、裁切、精整、成品包裝等工序加工而成，材料加工性能、塑性、力學性能、抗蝕性能、鍍錫性能等良好，廣泛應用于電器、電子、電力、汽車、通信、五金、裝飾等行業。
產品牌號
|
材料名稱 |
GB |
ISO |
ASTM |
JIS |
|
普通黃銅 |
H96 |
CuZn5 |
C21000 |
C2100 |
|
H90 |
CuZn10 |
C22000 |
C2200 |
|
|
H85 |
CuZn15 |
C23000 |
C2300 |
|
|
H70 |
CuZn30 |
C26000 |
C2600 |
|
|
H68 |
------ |
------- |
------ |
|
|
H65 |
CuZn35 |
C27000 |
C2700 |
|
|
H63 |
CuZn37 |
C27200 |
C2720 |
|
|
H62 |
CuZn40 |
C28000 |
C2800 |
|
|
鉛黃銅 |
HPb63-3 |
CuZn36Pb3 |
C34500 |
C3450 |
|
HPb62-2 |
------ |
C35300 |
C3530 |
|
|
HPb61-1 |
------ |
C37100 |
C3710 |
|
|
HPb60-2 |
------ |
C37700 |
C3700 |
|
|
HPb59-1 |
CuZn39Pb1 |
------ |
------ |
|
|
錫黃銅 |
HSn90-1 |
------ |
C40400 |
C4040 |
|
HSn62-1 |
CuZn38Sn1 |
C46400 |
C4640 |
化學成份
|
材料名稱 |
牌號 |
化學成分% |
||||||
|
Cu |
Fe |
Pb |
Sn |
Ni |
Zn |
雜質 |
||
|
普通黃銅 |
H96 |
95.0-97.0 |
0.10 |
0.03 |
--- |
0.5 |
Rem |
0.3 |
|
H90 |
88.0-91.0 |
0.10 |
0.03 |
--- |
0.5 |
Rem |
0.3 |
|
|
H85 |
84.0-86.0 |
0.10 |
0.03 |
--- |
0.5 |
Rem |
0.3 |
|
|
H70 |
68.5-71.5 |
0.10 |
0.03 |
--- |
0.5 |
Rem |
0.3 |
|
|
H68 |
67.0-70.0 |
0.10 |
0.03 |
--- |
0.5 |
Rem |
0.3 |
|
|
H65 |
63.5-68.0 |
0.10 |
0.03 |
--- |
0.5 |
Rem |
0.3 |
|
|
H63 |
62.0-65.0 |
0.15 |
0.08 |
--- |
0.5 |
Rem |
0.5 |
|
|
H62 |
60.5-63.5 |
0.15 |
0.08 |
--- |
0.5 |
Rem |
0.5 |
|
|
鉛黃銅 |
HPb63-3 |
62.0-65.0 |
0.1 |
2.4-3.0 |
--- |
0.5 |
Rem |
0.75 |
|
HPb62-2 |
60.0-63.0 |
0.15 |
1.5-2.5 |
--- |
--- |
Rem |
--- |
|
|
HPb61-1 |
58.0-62.0 |
0.15 |
0.6-1.2 |
--- |
--- |
Rem |
--- |
|
|
HPb60-2 |
58.0-61.0 |
0.30 |
2.0-3.0 |
--- |
--- |
Rem |
--- |
|
|
HPb59-1 |
57.0-60.0 |
0.50 |
0.8-1.9 |
--- |
--- |
Rem |
1.0 |
|
|
錫黃銅 |
HSn90-1 |
88.0-91.0 |
0.10 |
0.03 |
0.25-0.75 |
0.5 |
Rem |
0.2 |
|
HSn62-1 |
61.0-63.0 |
0.10 |
0.1 |
0.7-1.1 |
0.5 |
Rem |
0.3 |
|
機械性能
|
狀態 |
抗拉強度N/mm2 |
延伸率≥% |
維氏硬度HV |
|
O |
≥290 |
35 |
------ |
|
1/4H |
325-410 |
30 |
75-125 |
|
1/2H |
340-470 |
20 |
85-145 |
|
H |
390-630 |
10 |
105-175 |
|
TH |
≥490 |
2.5 |
≥145 |
|
注：不同材質，力學性能略有差別，具體以實際合同為準。 |
|||
帶材規格
|
品名 |
牌號 |
狀態 |
規格 |
|
|
厚度 |
寬度 |
|||
|
普通黃銅 |
H62 H63 H65 H68 H70 H85 H90 H96 |
O 1/4H 1/2H H TH |
0.05～0.2 |
≤300 |
|
＞0.2～0.49 |
≤600 |
|||
|
0.5～2.0 |
≤1220 |
|||
|
鉛黃銅 |
HPb63-3 HPb62-2 HPb61-1 HPb60-2 HPb59-1 |
O 1/2H H |
0.1～0.4 |
≤250 |
|
＞0.4～2.0 |
≤500 |
|||
|
錫黃銅 |
HSn90-1HSn62-1 |
H |
0.1～0.4 |
≤250 |
|
＞0.4～2.0 |
≤500 |
|||
板材規格
|
品種 |
牌號 |
狀態 |
規格 |
||
|
厚度 |
寬度 |
長度 |
|||
|
普通黃銅 |
H59 H62 H63 H65 H68 H70 |
R |
4～8 |
600～2000 |
≤4000 |
|
＞8～60 |
600～3000 |
≤6000 |
|||
|
＞60～120 |
600～2000 |
≤4000 |
|||
|
H62 H63
H65 H68 H70
H90 H96
|
O
1/2H
H
TH
|
0.2～0.49 |
600 |
1000～2000 |
|
|
0.5～2.5 |
600～1000 |
1000～3000 |
|||
|
3.0～4.0 |
600～2000 |
≤4000 |
|||
|
＞4.0～10 |
600～3000 |
≤6000 |
|||
|
鉛黃銅 |
HPb63-3 HPb62-2 HPb61-1 HPb60-2 HPb59-1 |
R |
4.0～8 |
≤550 |
≤3000 |
|
＞8～60 |
≤600 |
≤4000 |
|||
|
＞60～80 |
≤630 |
≤4000 |
|||
|
O
1/2H
H
|
0.5～2.5 |
300～500 |
1000～2000 |
||
|
3.0～4.0 |
≤550 |
≤4000 |
|||
|
＞4.0～10 |
≤550 |
≤4000 |
|||
|
錫黃銅 |
HSn62-1 HSn90-1 |
R |
4.0～8 |
600～2000 |
≤4000 |
|
＞8～60 |
600～3000 |
≤6000 |
|||
|
＞60～150 |
600～2500 |
≤4000 |
|||
|
O
1/2H
H
|
0.5～2.5 |
300～500 |
1000～2000 |
||
|
3.0～4.0 |
≤550 |
≤4000 |
|||
|
＞4.0～10 |
≤550 |
≤4000 |
|||
帶材公差
|
厚度 |
寬度 |
|||||
|
＜300 |
＜600 |
＜1000 |
＜400 |
＜600 |
＜1220 |
|
|
厚度允許偏差± |
寬度允許偏差± |
|||||
|
0.05～0.1 |
0.005 |
----- |
----- |
0.2 |
----- |
----- |
|
0.1～0.3 |
0.008 |
0.015 |
----- |
0.3 |
0.4 |
----- |
|
0.3～0.5 |
0.015 |
0.020 |
----- |
0.3 |
0.5 |
----- |
|
0.5～0.8 |
0.020 |
0.030 |
0.060 |
0.3 |
0.5 |
0.8 |
|
0.8～1.2 |
0.030 |
0.040 |
0.080 |
0.4 |
0.6 |
0.8 |
|
1.2～2.0 |
0.040 |
0.045 |
0.100 |
0.4 |
0.6 |
0.8 |
|
2.0～3.0 |
0.045 |
0.050 |
0.120 |
0.5 |
0.6 |
0.8 |
|
3.0以上 |
0.050 |
0.12 |
0.15 |
0.6 |
0.8 |
1.0 |
板材公差
|
厚度 |
寬度 |
|||||
|
＜600 |
＜1000 |
＜2000 |
＜600 |
＜1000 |
＜2000 |
|
|
厚度允許偏差± |
寬度允許偏差± |
|||||
|
0.1～0.3 |
0.020 |
0.025 |
----- |
0.3 |
0.3 |
----- |
|
0.3～0.5 |
0.030 |
0.035 |
----- |
0.3 |
0.3 |
----- |
|
0.5～0.8 |
0.035 |
0.050 |
0.080 |
0.3 |
0.3 |
1.5 |
|
0.8～1.2 |
0.040 |
0.060 |
0.090 |
0.3 |
0.5 |
1.5 |
|
1.2～2.0 |
0.050 |
0.080 |
0.100 |
0.3 |
0.5 |
2.5 |
|
2.0～3.2 |
0.060 |
0.100 |
0.120 |
0.5 |
0.5 |
2.5 |
|
3.2～5.0 |
0.080 |
0.120 |
0.15 |
0.5 |
0.8 |
5.0 |
|
5.0～8.0 |
0.110 |
0.160 |
0.200 |
0.5 |
0.8 |
5.0 |
|
8.0～12.0 |
0.150 |
0.200 |
0.250 |
0.5 |
0.8 |
5.0 |
|
12.0～20.0 |
0.400 |
0.650 |
1.100 |
5.0 |
7.5 |
10.0 |
|
20.0～30.0 |
0.550 |
0.850 |
1.300 |
5.0 |
7.5 |
10.0 |
|
30.0～40.0 |
0.700 |
1.100 |
1.600 |
5.0 |
7.5 |
10.0 |
|
40.0～60.0 |
0.900 |
1.300 |
2.200 |
5.0 |
7.5 |
10.0 |

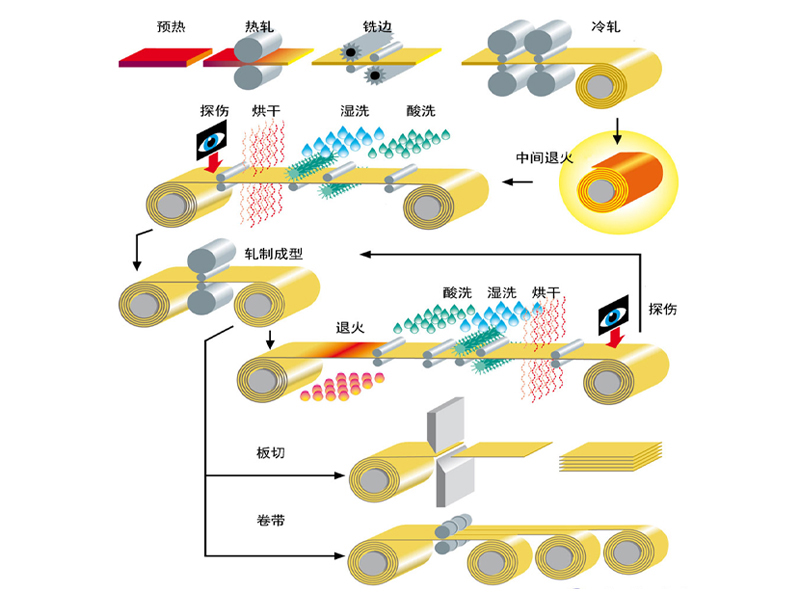

生產工藝
